Levelflex FMP53

Guided radar measurement
Time-of-Flight
Levelflex FMP53

For the highest hygiene requirements in the food and life sciences industry

FMP53
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

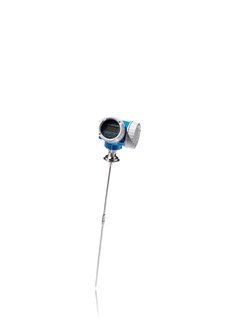

Levelflex FMP53
  • F
  • L
  • E
  • X
©Endress+Hauser

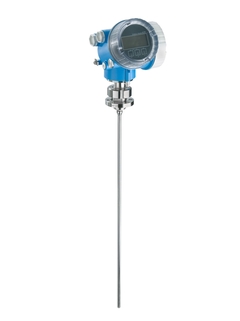

Levelflex FMP53
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Rod probe:+/- 2 mm (0.08 in)

  • Process temperature

    -20...+150 °C
    (-4...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...16 bar
    (Vacuum...232 psi)

  • Max. measurement distance

    Rod: 6 m (20 ft)
    Min DK>1.6

  • Main wetted parts

    Rod probe:
    304, 304L, 316L, PEEK

Field of application

Levelflex FMP53 for continuous level measurement for hygienically sensitive applications in the food and life sciences industry. FMP53 meets the hygiene requirements according to ASME BPE and USP Class VI. The unique in situ validation without dismantling from the process is a cost saving advantage. FMP53 guided radar offers maximum reliability even in case of moved surface and foam, for changing medias and in case of filling via spray head.

Version with rod probe.

  • Process connections: For hygiene requirements (Tri-Clamp, 11851, 11864, NEUMO,
    Varivent N, SMS)

  • Temperature: -20 to +150°C (-4 to +302°F)

  • Pressure: -1 to +16bar (-14.5 to +232psi)

  • Maximum measuring range: Rod 6m (20ft)

  • Accuracy: ±2mm (0.12")

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, 5-point linearity protocol

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test for SIL and WHG saves time and costs

Videos

  • Time-of-Flight measuring principle

  • Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar

  • Unique HistoROM data management concept for safe level measurement

  • Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

  • Multi-Echo Tracking with Tank Trace marks and traces all echoes signals, not only the level signal - guaranteeing safe measurement at any time
