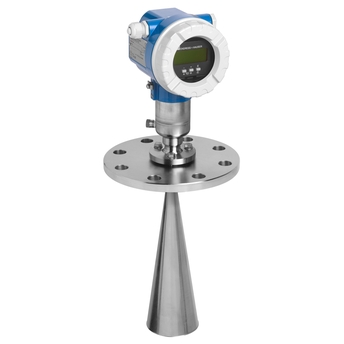

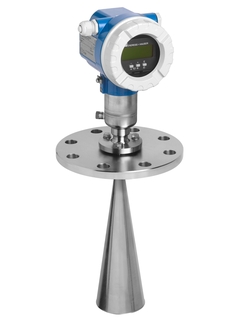

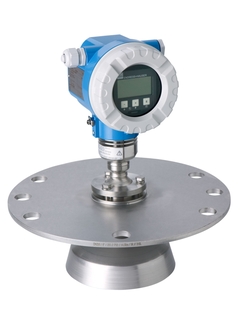

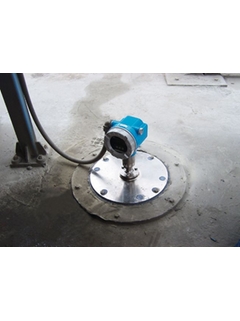

Name: Micropilot M FMR250
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

F

L

E

X

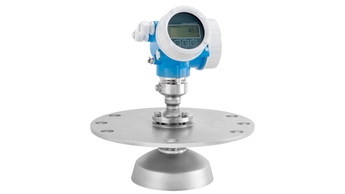

Micropilot FMR57

The standard sensor for highest demands in bulk solids level measurement
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-
F

L

E

X

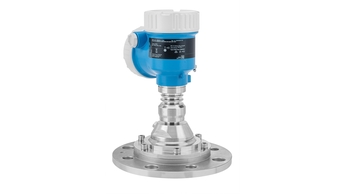

Micropilot FMR67B

Highest performance for demanding applications
Discover more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Non-contact level measurement especially in powdery to granular bulk solids. Level measurement in tall silos with extremely dusty bulk solids e.g. cement, raw meal or animal feed. Applications with highly abrasive bulk solids e.g. ferrite / clinker
Specialities

Air purge connection
Supply / Communication

2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus)
Frequency

K-Band (~ 26 GHz )
Antenna

Parabolic DN200/8", DN250/10"
Horn DN80/3", DN100/4"
Accuracy

+/- 15mm (or 0.04% of range, whatever is larger)
Ambient temperature

-40 °C...+80 °C
(-40 °F...+176 °F)
Process temperature

-40 °C...+200 °C
(-40 °F...+392 °F)
Process pressure / max. overpressure limit

Vacuum...16bar
(Vaccum...232psi)
Main wetted parts

PEEK, 1.4435, 1.4404, 316L
Process connection

Thread:
R1 1/2", NPT1 1/2
Flange:
DN80, DN 100
ASME 3", 4"
JIS 80A, 100A
UNI DN100/4"...DN250/10"
Blocking distance

Antenna length + 400mm (15.75")
Max. measurement distance

70 m (230 ft)
Communication

4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX, FM, CSA, NEPSI
SIL
Options

Separate display
Antenna extension 250 mm/ 10" or 450 mm/18"
Top Target Positioner (+/-15°)
Application limits

Dk < 1.6
Reduction of the max. possible measuring range through:
Media with poor reflection properties
Angle of repose
Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling
Build-up, above all of moist products

Filter

Search downloads by serial number

Configure to download the CAD drawings of this product

Configure

88 documents

Technical Information (TI)

Micropilot M FMR250 Technical Information

Technical Information (TI)

English version - 10/2012

New version available in English

Continuous and non-contact level measurement in solids.
Cost effective 4 to 20 mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
01/10/2012
31/01/2011
31/12/2009
03/08/2009
04/05/2009

Language:	English
Version:	01/10/2012
File size:	2.2 MB
File name:	TI00390FEN_1412.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot M FMR250 PROFIBUS PA Operating Instructions

Operating Instruction (BA)

English version - 07/2010

New version available in English

Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
30/07/2010
18/05/2009
31/08/2006
31/01/2006
28/11/2005

Language:	English
Version:	30/07/2010
File size:	7.3 MB
File name:	BA331FEN_0310.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot M FMR250 HART Operating Instructions

Operating Instruction (BA)

English version - 07/2010

New version available in English

Conitnuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
30/07/2010
18/05/2009
31/08/2006
31/01/2006
28/11/2005

Language:	English
Version:	30/07/2010
File size:	6.5 MB
File name:	BA284FEN_0310.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot M FMR250 FOUNDATION Fieldbus Operating Instructions

Operating Instruction (BA)

English version - 07/2010

New version available in English

Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
30/07/2010
18/05/2009
30/06/2007

Language:	English
Version:	30/07/2010
File size:	5.4 MB
File name:	BA336FEN_0310.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Micropilot M FMR240, 244, 245, 250 HART, PROFIBUS PA, FOUNDATION Fieldbus Description of Instrument Functions

Operating Instruction (BA)

English version - 08/2006

New version available in English

Continuous and con-contact level measurement.
Cost-effective 4 to 20 mA 2-wíre technology.
Suitable for hazardous locations.

Select other languages, versions and see details Hide selection and details

	EN
03/08/2006
31/01/2006
21/11/2005
01/08/2004

Language:	English
Version:	03/08/2006
File size:	1.8 MB
File name:	BA291FEN.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot II/M - exchange of housing F12

Short Instruction (KA)

English version - 04/2021

New version available in English

Micropilot II/M - exchange of housing F12

Select other languages, versions and see details Hide selection and details

	EN
15/04/2021

Language:	English
Version:	15/04/2021
File size:	194.9 KB
File name:	KA00556F00_A2.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot M FMR250 HART (SW 1.0) Instalation instructions for parabolic reflector

Short Instruction (KA)

English version - 07/2004

New version available in English

Smart Transmitter for continuous and non-contact level measurement in
solids. Cost-effective 420 mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
30/07/2004
01/08/2003

Language:	English
Version:	30/07/2004
File size:	63.6 KB
File name:	KA236FA6.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2 wire) for connection of FHX40

Short Instruction (KA)

English version - 04/2021

New version available in English

Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2
wire) for
connection of FHX40

Select other languages, versions and see details Hide selection and details

	EN
20/04/2021

Language:	English
Version:	20/04/2021
File size:	188.7 KB
File name:	KA00594F_A2.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot M FMR250 Brief Operating Instructions

Short Instruction (KA)

English version - 12/2009

New version available in English

Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
31/12/2009

Language:	English
Version:	31/12/2009
File size:	1.2 MB
File name:	KA1017FEN_1209.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Micropilot M FMR250 Brief Operating Instructions

Short Instruction (KA)

English version - 12/2009

New version available in English

Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

Select other languages, versions and see details Hide selection and details

	EN
31/12/2009

Language:	English
Version:	31/12/2009
File size:	1.2 MB
File name:	KA1016FEN_1209.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Plug 3-pole, M12, gasket

further parts

Order code

52020763
Set of screws housing F12/T12/F23

Housing/housing accessories

Drawing number

Order code

12

535720-9020
Cover F12/T12 Alu, coated, gasket

Cover

Drawing number

Order code

20

517391-0011
Cover T3/T12 Alu, coated, gasket

Cover

Drawing number

Order code

25

518710-0020
Cover F12/T12 Alu, window, gasket

Cover

Drawing number

Order code

20

52005936
Cover terminal compartment F12/F23

Cover

Drawing number

Order code

11

52006026
Cover terminal compartment F12/F23,FHX40

Cover

Drawing number

Order code

11

52019062
Hood housing T12

Cover

Drawing number

Order code

11

52005643
O-ring 113.9x3.63 EPDM, 5 pieces

further parts

Order code

71092209
Terminal module 4-pole, HART, 2-wire

Terminal module

Drawing number

Order code

35

52006197
Terminal module 4-pole, PA, FF

Terminal module

Drawing number

Order code

35

52012156
Terminal mod. Ex d, 4-pol., 2wr,HART,T12

Terminal module

Drawing number

Order code

35

52013302
Terminal mod. Ex d, 2-pol.,2wr,PA/FF,T12

Terminal module

Drawing number

Order code

35

52013303
Terminal mod. 4-pol.,EEx ia,HART,T12,OVP

Terminal module

Drawing number

Order code

35

52018949
Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

Terminal module

Drawing number

Order code

35

52018950
Display VU331, version 2

Display

Drawing number

Order code

40

52026443
Parabolic reflector 197x25, 316L

Antenna module

Drawing number

Order code

55

52025233
Horn FMR250/540,100mm/4",length 430mm,SS

Antenna module

Drawing number

Order code

55

71020169
Parabolic reflector 173x60, 316L

Antenna module

Drawing number

Order code

55

71090287
Parabolic reflector 236x88, 316L

Antenna module

Drawing number

Order code

55

71090289
Adaption kit housing F12, 2-wire, FHX40

further parts

Order code

52018204
Cable FHX40, 20m

further parts

Order code

52016334
Cable FHX40, 5m

further parts

Order code

71020502
Cable FHX40, 10m

further parts

Order code

71020503
Cable FHX40, 30m

further parts

Order code

71020504
HF-test cable 26GHz

further parts

Order code

52009925
Tool for unplugging the antenna cable

further parts

Order code

52007646
ToF Adapter FXA291

further parts

Order code

71007843
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60

further parts

Order code

71000221
Adapter cable FMR2xx/53x, FMU4x, FMP4x

further parts

Order code

52007441
Modification name plate, non Ex

further parts

Order code

71067434
Protective cover for housing T12/F12, SS

further parts

Order code

543199-0001
Mounting bracket FHX40 1" / 2" pipe

Order code

52013874
Weather protection cover FMR250, FMR57

Order code

71133074
Display FHX40

Order code

FHX40-
Horn protection, 100mm (4") horn

Order code

71105889
Horn protection, 80mm (3") horn

Order code

71105890

Micropilot M FMR250

Successor

Micropilot FMR57

Micropilot FMR67B

Characteristic / Application

Specialities

Supply / Communication

Frequency

Antenna

Accuracy

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Main wetted parts

Process connection

Blocking distance

Max. measurement distance

Communication

Certificates / Approvals

Options

Application limits

Back

Micropilot M FMR250 Technical Information

Micropilot M FMR250 PROFIBUS PA Operating Instructions

Micropilot M FMR250 HART Operating Instructions

Micropilot M FMR250 FOUNDATION Fieldbus Operating Instructions

Micropilot M FMR240, 244, 245, 250 HART, PROFIBUS PA, FOUNDATION Fieldbus Description of Instrument Functions

Micropilot II/M - exchange of housing F12

Micropilot M FMR250 HART (SW 1.0) Instalation instructions for parabolic reflector

Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2 wire) for connection of FHX40

Micropilot M FMR250 Brief Operating Instructions

Micropilot M FMR250 Brief Operating Instructions

Back

Plug 3-pole, M12, gasket

Set of screws housing F12/T12/F23

Cover F12/T12 Alu, coated, gasket

Cover T3/T12 Alu, coated, gasket

Cover F12/T12 Alu, window, gasket

Cover terminal compartment F12/F23

Cover terminal compartment F12/F23,FHX40

Hood housing T12

O-ring 113.9x3.63 EPDM, 5 pieces

Terminal module 4-pole, HART, 2-wire

Terminal module 4-pole, PA, FF

Terminal mod. Ex d, 4-pol., 2wr,HART,T12

Terminal mod. Ex d, 2-pol.,2wr,PA/FF,T12

Terminal mod. 4-pol.,EEx ia,HART,T12,OVP

Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

Display VU331, version 2

Parabolic reflector 197x25, 316L

Horn FMR250/540,100mm/4",length 430mm,SS

Parabolic reflector 173x60, 316L

Parabolic reflector 236x88, 316L

Adaption kit housing F12, 2-wire, FHX40

Cable FHX40, 20m

Cable FHX40, 5m

Cable FHX40, 10m

Cable FHX40, 30m

HF-test cable 26GHz

Tool for unplugging the antenna cable

ToF Adapter FXA291

Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60

Adapter cable FMR2xx/53x, FMU4x, FMP4x

Modification name plate, non Ex

Protective cover for housing T12/F12, SS

Mounting bracket FHX40 1" / 2" pipe

Weather protection cover FMR250, FMR57

Display FHX40

Horn protection, 100mm (4") horn

Horn protection, 80mm (3") horn

We value your privacy
