iTEMP TMT82 temperature transmitter with HART® communication

iTEMP TMT82 temperature transmitter

HART® temperature transmitter as head, field or DIN rail device with two universal sensor inputs suitable for use in hazardous areas and SIL 2

TMT82
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
iTEMP TMT82 HART® 7 temperature transmitter in DIN rail and terminal head form
  • F
  • L
  • E
  • X
©Endress+Hauser

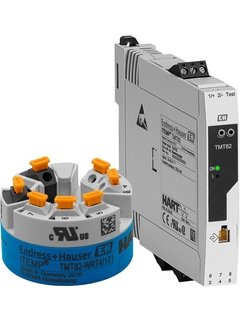

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

Product picture iTEMP TMT82 Temperature transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

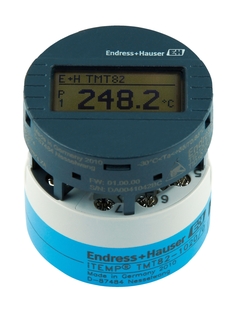

Display TID10 to plug on

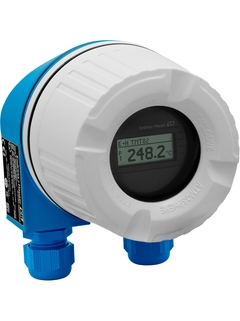

iTEMP TMT82 dual compartment field housing with integrated display
  • F
  • L
  • E
  • X
©Endress+Hauser

iTEMP TMT82 in field mount housing with separate terminal
compartment and integrated display for use in hazardous areas

iTEMP TMT82 Temperature transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Installed in field housing TA30H for use in Ex d applications

iTEMP TMT82 temperature transmitter with screw terminals
  • F
  • L
  • E
  • X
©Endress+Hauser

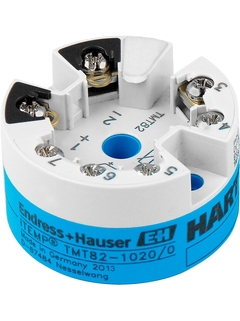

iTEMP TMT82 temperature transmitter in terminal head form B as per DIN EN 50446, with screw terminals

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

  • Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL

  • 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol

  • Suited for use in marine applications

  • Installation in explosion proof field housings;

  • Protection class up to IP 68

  • Fits in flat-face terminal heads as per DIN EN 50446

  • Cabinet or DIN rail mounting; width: 17.5 mm

Benefits

  • Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability

  • SIL certification up to SIL2, SC3 according to IEC 61508:2010

  • Versatile mounting and housing options:
    terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)

  • Transmitter-sensor matching for highest measurement accuracy

  • Sensor and hardware failure detection; diagnostic status information
    according to NAMUR NE 107

  • Time-saving installation: Tool-free wiring with push-in terminal technology
